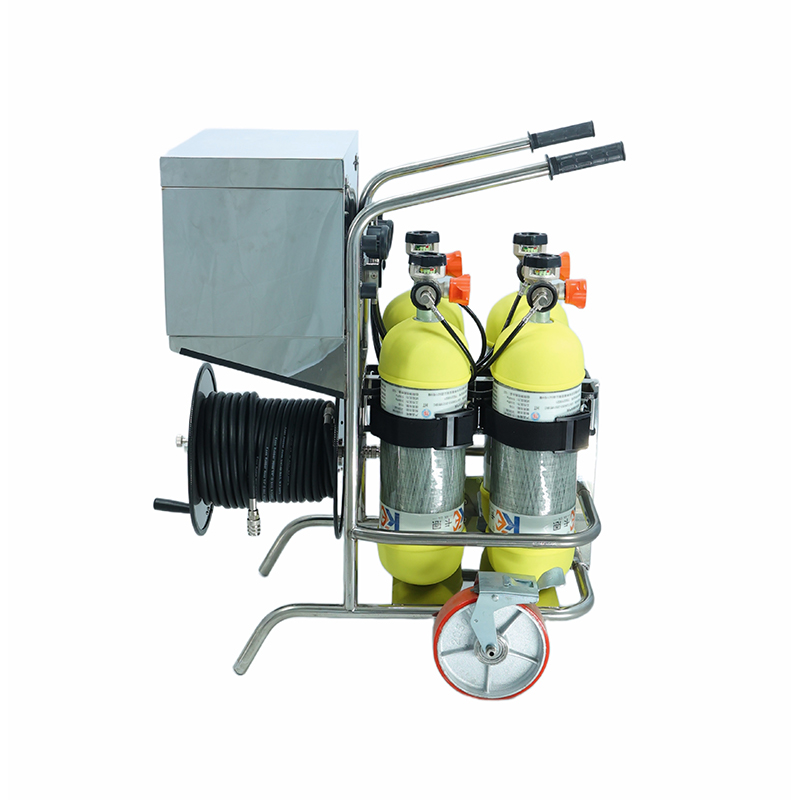

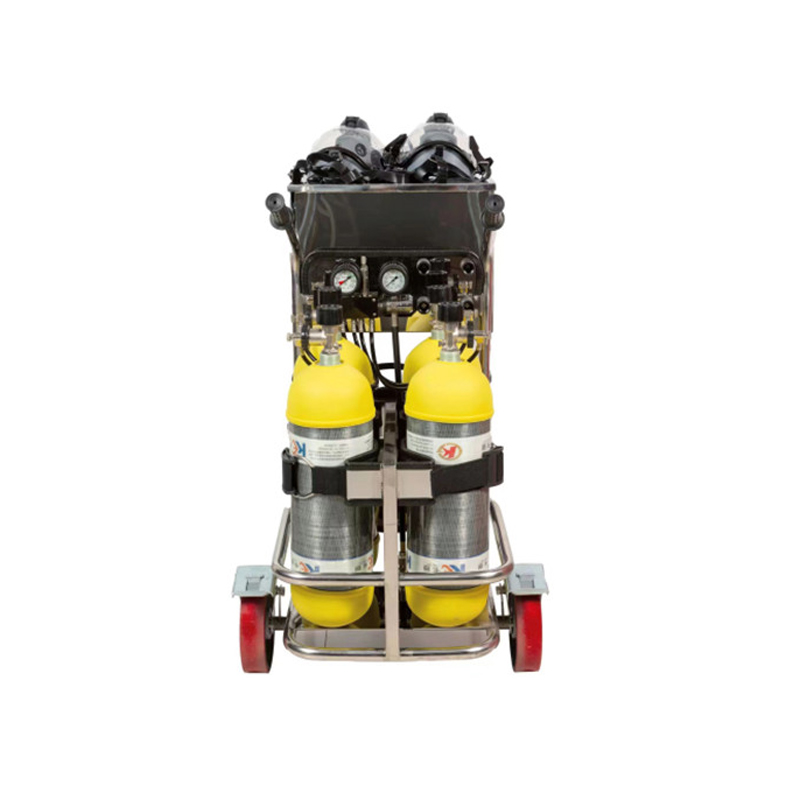

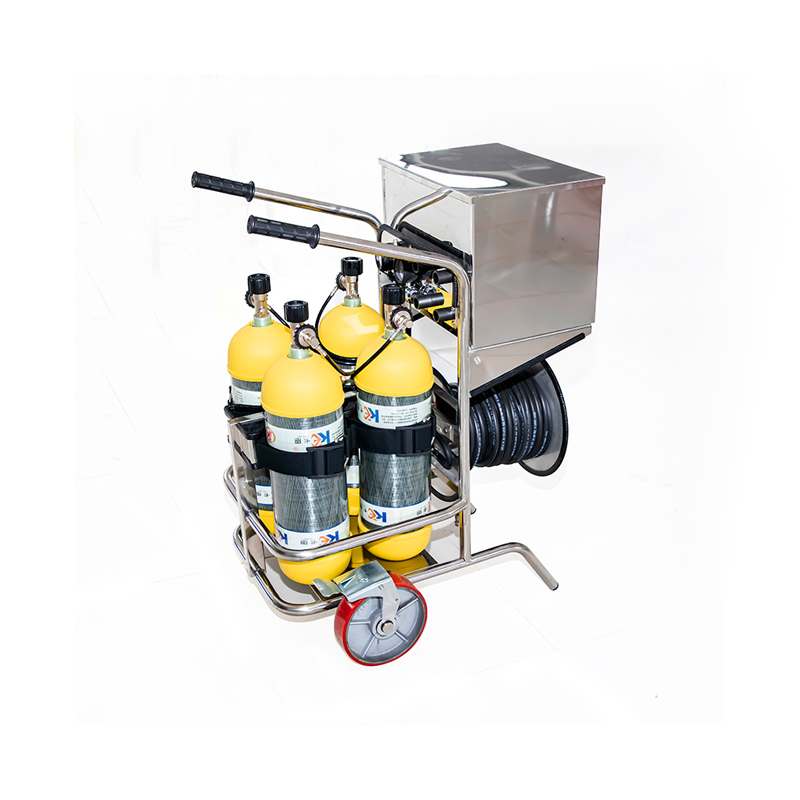

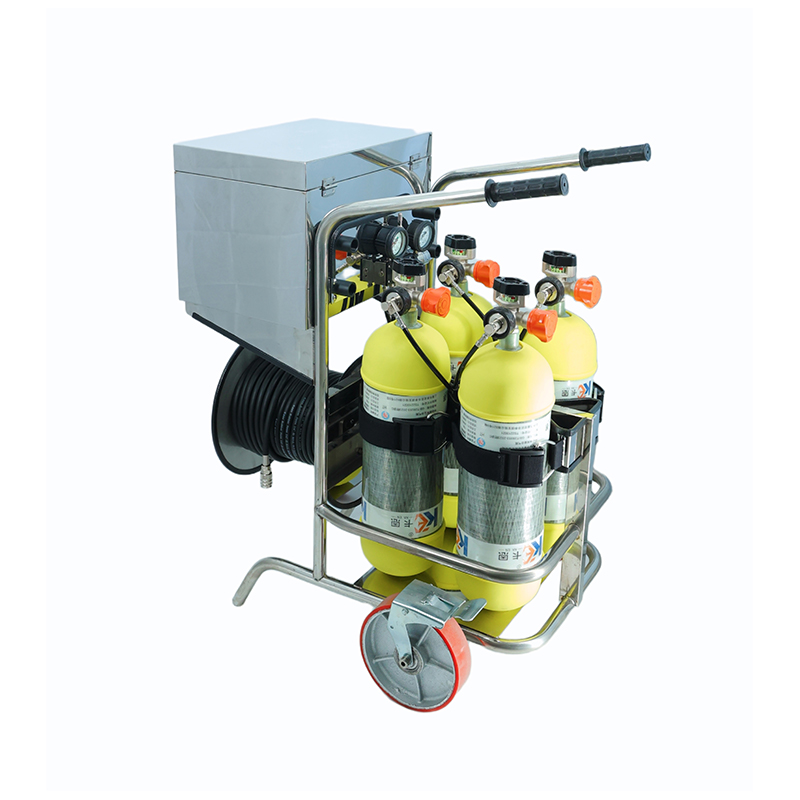

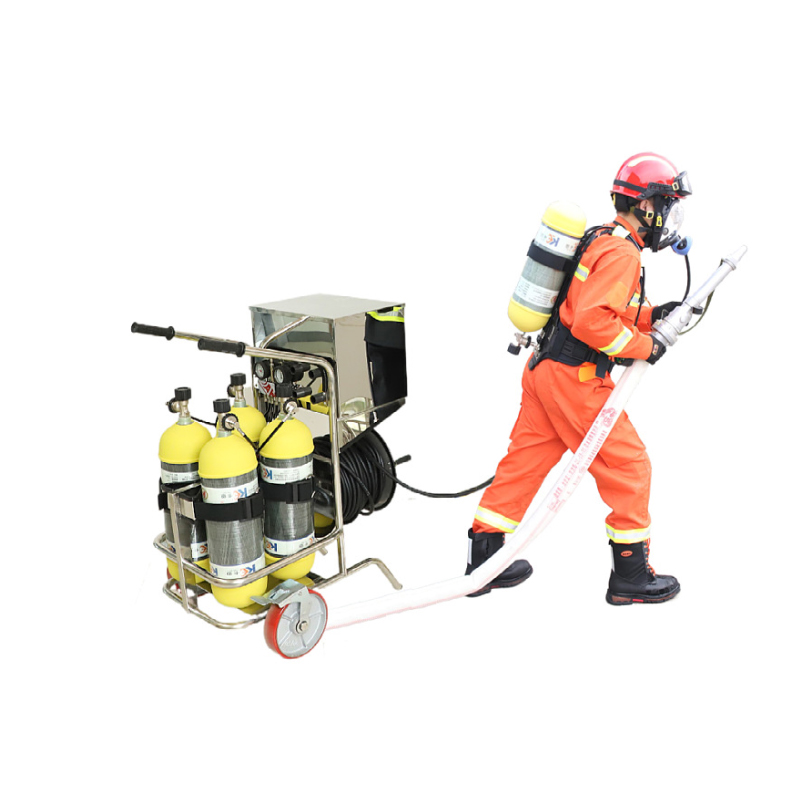

Trolley breathing apparatus

Introduction：

  1. Trolley breathing apparatus is especially used in tunnels, pipes, or other limited spaces, and other contaminated environments for long-term, difficult, and complicated work.
  2. Composed of a stainless steel trolley, a carbon fiber cylinder, an air supply tube, a reducer, a demand valve, and a full face mask, etc.
Trolley breathing apparatus View PDF
PREV: No previous article NEXT: HKC60 Long tube breathing apparatus cart

Product Advantages

-

Optional Device:

  1. Optional 6.8L, 9L carbon cylinder or 5L, 6L steel cylinder.
  2. Optional 4-cylinder or 2-cylinder device.
  3. Optional horizontal or vertical cylinder placement.
  4. An escape breathing device is an alternative.

Features：

  1. It can be used by two people simultaneously, ensuring long working hours. -The cylinder can be replaced in a timely manner, to save time effectively, without affecting the work.
  2. The stainless steel trolley has good anti-corrosion properties.
  3. With foot-brake can be stationary at 30 degrees inclined ground.
  4. Standard configuration of Medium Pressure tube: With 30m main tube and two 10m branches.
  5. The total length of the MP tube can be extended to 90m according to actual needs, still ensuring a comfortable and smooth air supply.
  6. Adopting a flexible connection between the high-pressure tubes to avoid accidents and effectively prevent damage of joints caused by collision or friction.
  7. The reducer valve with large-flow output can ensure sufficient respiratory flow.

Technical Parameters

-

Model

CGKH4-L

Standard

CE, ISO

Cylinder Material

Carbon fiber cylinder

Cylinder Volume（L）

6.8

6.8

9

9

Working Pressure（MPa）

30

30

30

30

Number of cylinders

2

4

2

4

Number of workers

2

2

2

2

Using time（min）

≥120

≥240

≥180

≥360

Pressure reducer

Output pressure

0.97 MPa

Alarm

Alarm pressure

5.6 MPa

Average air consumption

2.7 L/min

Long tube air breathing apparatus

Air supply

505 L/min

Static pressure

293 Pa

Burst pressure

42.1 MPa

Air tightness

Pressure drops 0 MPa in 1 minute

Standard equipped hose length (m)

50
