1.Cylinder working pressure: 30 MPa

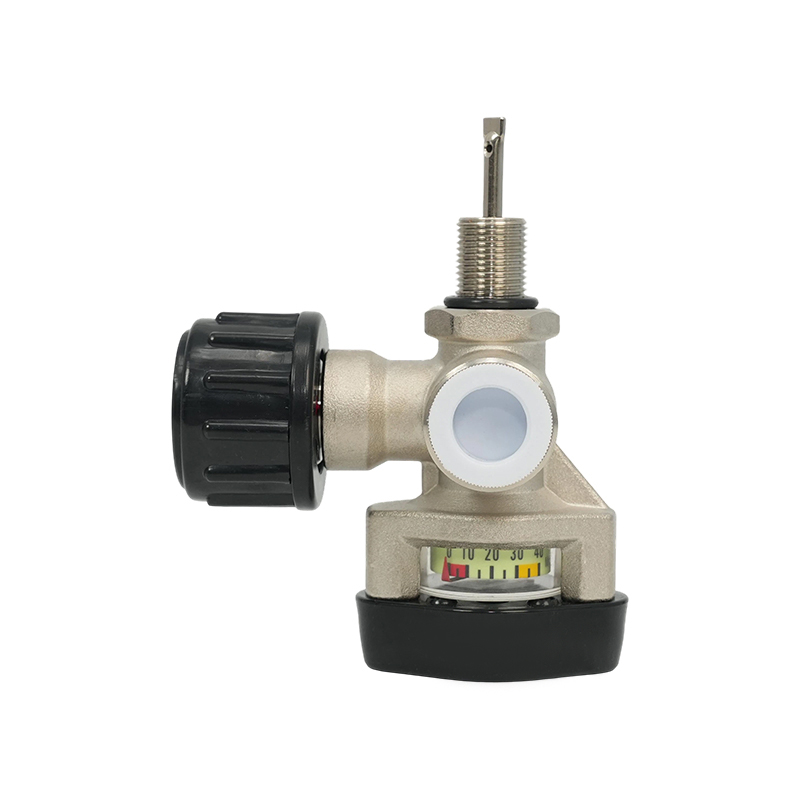

The cylinder inner layer is wrapped with circular markings. The cylinder valve is equipped with a built-in dual-sided pressure gauge, capable of displaying the internal cylinder pressure at all times.
The cylinder valve features a push-type self-locking switch design to prevent accidental opening or closing.
Product Advantages

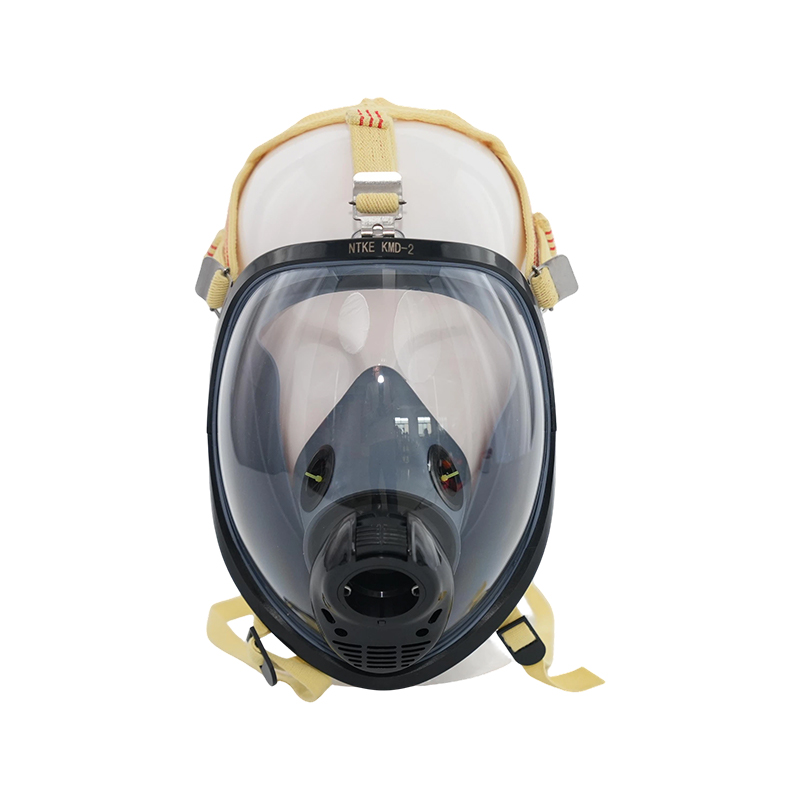

2.Full-Face Mask Assembly
Total field of view ≥ 81%; binocular field of view ≥ 70%; light transmittance ≥ 93%.
Visor surface is hardened and treated with anti-fog coating.
Mask material is odorless, non-irritating, and non-toxic.
Mouth-nose piece made of high-quality silicone, non-toxic, odorless, non-irritating, securely attached to the mask and not easily detached.
Ultra-thin aramid mesh head harness with elastic adjustment straps at the top and sides.
Sealing frame must fit the wearer’s face snugly without causing pressure discomfort.

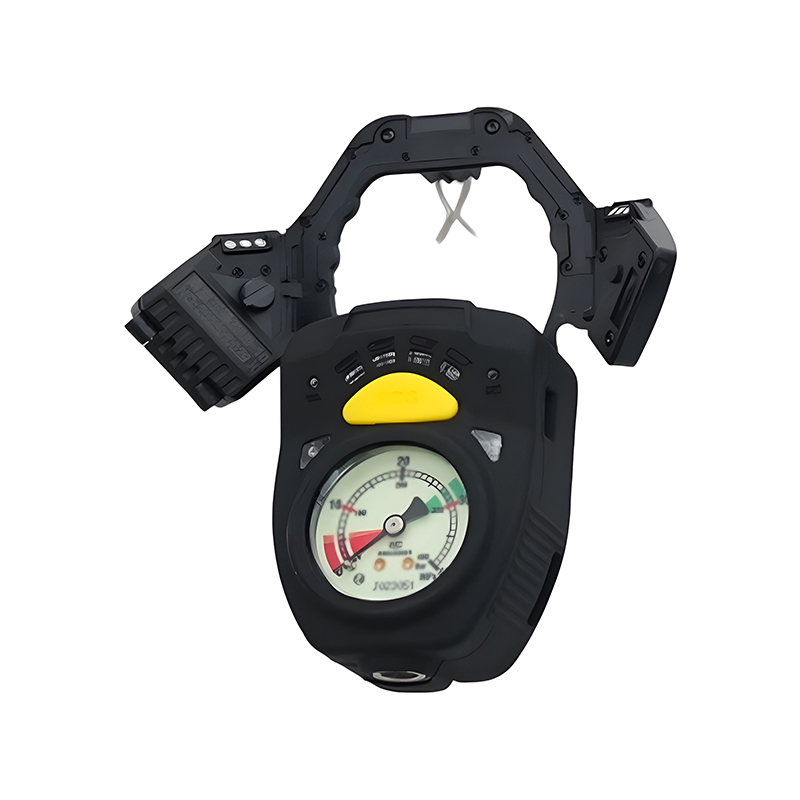

3.Pressure Heads-Up Display Device
Equipped with a pressure heads-up function. The device uses wireless connectivity and does not obstruct the wearer’s vision or head movement. The wearer can observe the LED status regardless of head orientation.
Gas pressure inside the cylinder is measured by a pressure transmitter, and the signal is wirelessly transmitted to the pressure light display. Each signal is uniquely identifiable.
The pressure heads-up display uses red, yellow, and green LEDs to indicate different pressure ranges:
30 MPa – 10 MPa: green light steady on
10 MPa – 6 MPa: yellow light steady on
Below 6 MPa: red light flashes continuously
When the display device has low voltage, the yellow light flashes continuously.
Features a low-pressure vibration alert, providing intermittent vibration warning between 0–6 MPa.
After initial pairing, the display device automatically connects without the need for re-pairing.
Equipped with an ambient light sensor to adjust LED brightness, protecting the user’s eyesight.
Operating temperature range: minimum ≤ -30 ℃, maximum ≥ 60 ℃.
4.Equipped with a high-pressure quick-fill
Device to reduce cylinder replacement frequency, shorten emergency response time, and improve rescue efficiency.
