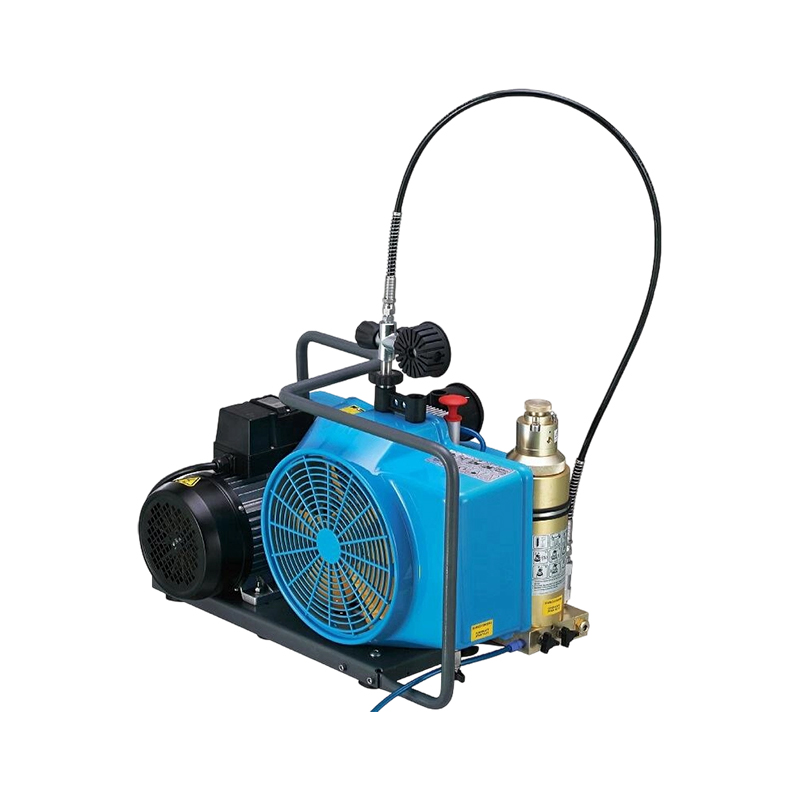

Air filling pump (100L, 220V)

The air filling pump (100L 220V) is a specialized air source device that integrates high-pressure filling and emergency evacuation protection functions. With a filling capacity of 100L/min, this device is driven by standard 220V AC power, eliminating the reliance on industrial electricity for similar high-flow equipment.

Compared to other single-function filling pumps, its core advantage lies in being equipped with standardized rescue protection components, enabling immediate connection of the air source and the breathing end through a quick coupling connector. The main body of the device is constructed using high-strength composite materials, maintaining the rated working pressure while significantly reducing the overall weight and volume of the machine.

The design of this model focuses on simplifying operation and response speed, ensuring that non-professionals can quickly deploy and use the breathing protection device in emergencies. The transparent anti-fog technology enhances visibility in extreme environments.

Air filling pump (100L, 220V) View PDF
PREV: 215L /300L Air Compressor Pump (Auto Start-Stop) NEXT: Model EP2-P / EP4-P Explosion-proof Inflation Box

Product Advantages

-

1. Core Function and Composition
High-pressure filling capability: Provides a compressed air output with a rated flow of 100L/min, meeting the high-efficiency filling requirements of breathing gas cylinders.
Interface standardization: Utilizes a universal quick connector design to ensure seamless compatibility with various specifications of respiratory protection equipment.
2. Material and Structural Advantages
High-strength and lightweight: The structural components of the entire machine are made of corrosion-resistant high-strength materials. This ensures the safety of pressure-bearing while optimizing the portability of the equipment, making it easy to be moved by a single person.
Compact design: The internal layout is compact, with a small Floor area， making it suitable for storage in mobile operation vehicles or fire equipment rooms with limited space.
Long-lasting filtration system: An internal air purification filter device is included to ensure that the output compressed air meets the respiratory hygiene standards.
3. User Experience and Design
Visual Optimization: The headgear part is equipped with a large transparent anti-fog screen, which provides a wide field of vision while effectively preventing fog caused by temperature differences from interfering and reducing the psychological anxiety of the rescued person.
Quick Put-On: The headgear structure is designed based on ergonomics, allowing for quick donning without the need for complex adjustment processes, suitable for emergency escape scenarios.
Simplified Operation Panel: The control interface is intuitive, featuring pressure preset and automatic shutdown functions, reducing the operational difficulty.
4. Application Scenarios
Firefighting and Rescue: Used for rapid replenishment of gas cylinders at fire scenes and providing breathing support for evacuated personnel.
Industrial Safety: Emergency evacuation and gas source assurance in environments with toxic and harmful gases in factories, mines, etc.
Diving Operations: Provide a convenient 220V breathing gas source filling solution for small diving clubs or on-site operations.
Emergency Reserve: As emergency rescue materials for public places such as hospitals and high-rise buildings.

Technical Parameters

-

Operating pressure

 300 BAR (30 MPa) or 200 BAR (20 MPa) optional

Filling efficiency

 100 L/min

Drive motor

 220V/380V, 2.2kW, 50Hz/60Hz

Output interface

 Fire G5/8

Output hose

 1 piece

Air filtration system

 Oil-water separator + molecular sieve + activated carbon

Weight

 Approx. 45 kg

Dimensions

 L 66cm x W 39cm x H 41cm

Lubricating oil filling capacity

 0.36~0.4L
