200-500 kg rescue tripod

Rescue Tripod – Features and Specifications

The Rescue Tripod is constructed from high-strength, lightweight alloy with telescopic legs, featuring integrated self-locking mechanisms for both lifting and lowering.



It is equipped with specially designed stainless steel wire ropes that provide excellent flexibility and are resistant to damage from rust or lack of lubrication.

200-500 kg rescue tripod View PDF
PREV: No previous article NEXT: 300-800 kg rescue tripod

Product Advantages

-

The basic technical specifications for the rescue tripod are as follows:

Maximum Load: 200 kg – 500 kg

Collapsed Length: 141 cm

Extended Length: 222 cm

Manual Handle Force: ≤ 500 N

Wire Rope Length: 20 – 50 m

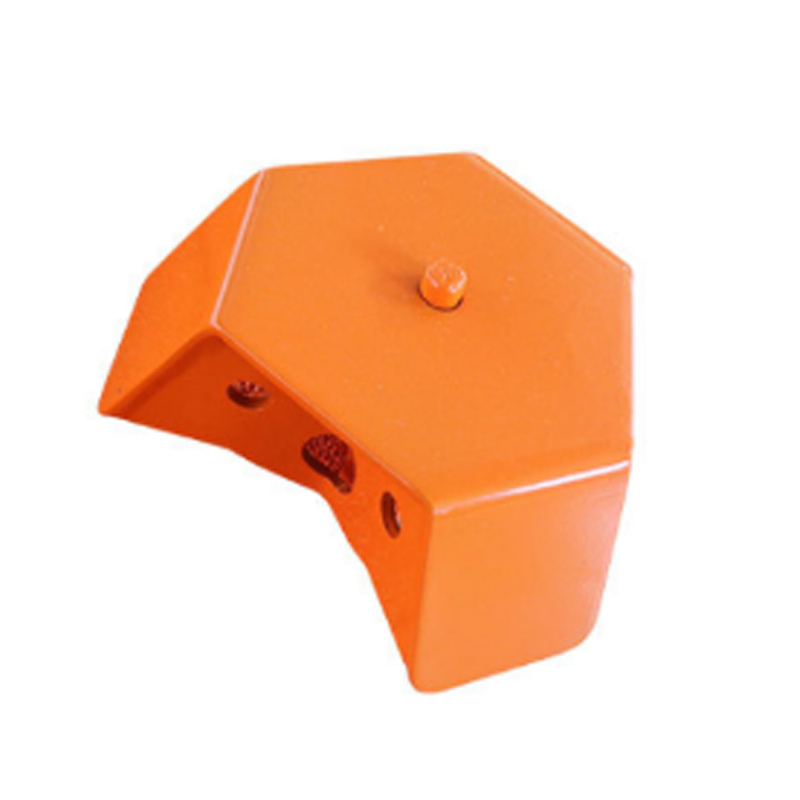

The rescue tripod is primarily utilized for rescue operations in deep wells or confined spaces. Its structure comprises a main support frame, a dual-point safety hook, a full-body safety harness, a rescue hoisting mechanism, and a retractable fall arrester.

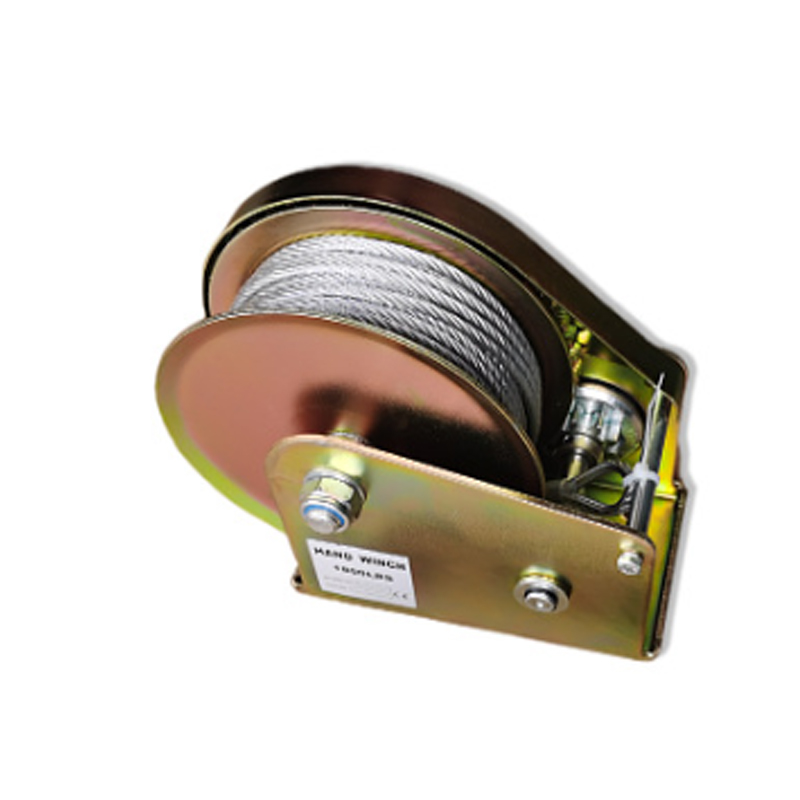

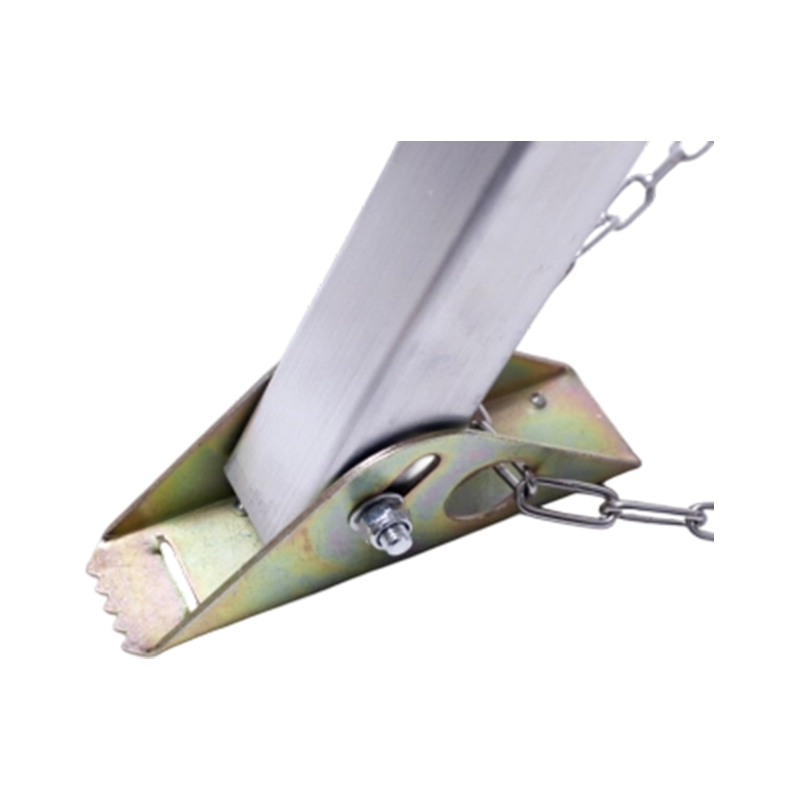

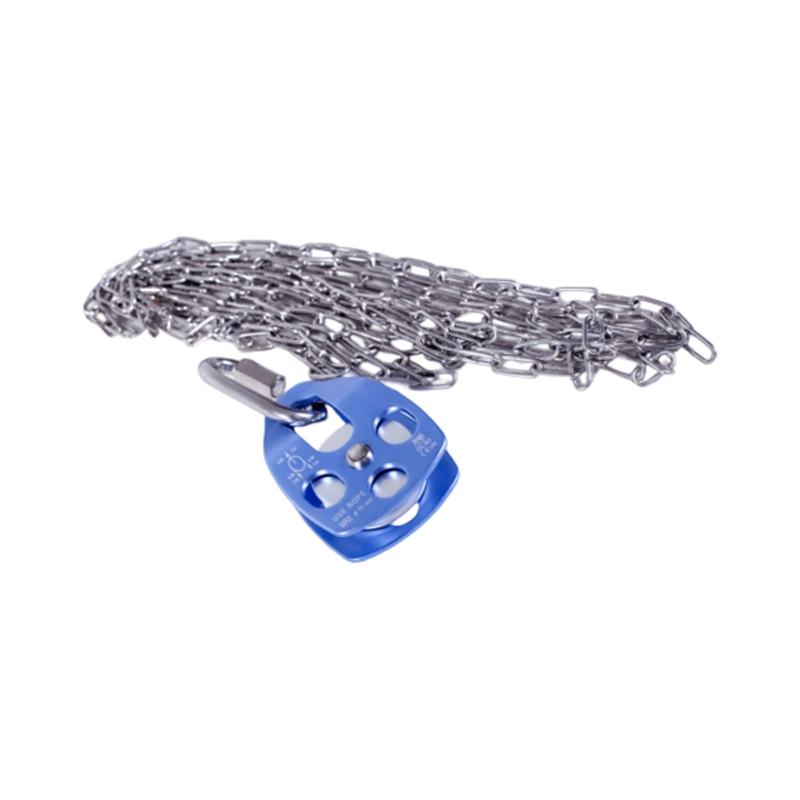

The device features retractable legs constructed from a high-strength, lightweight alloy, boasting a safety factor greater than 10; the base of the legs is fitted with a protective safety chain. The winch is equipped with a self-locking mechanism for both ascent and descent, thereby ensuring the safety of the hoisting cable. Rescue tripods are widely employed in fields such as firefighting, municipal services, and emergency rescue operations.



The hoisting cable consists of a specially manufactured stainless steel wire rope, selected for its excellent flexibility and its resistance to damage caused by corrosion or a lack of lubrication.



The rescue tripod is suitable for operations conducted at heights, on cliffs, and within confined spaces.

Common examples of confined spaces include various storage tanks, vessels, reaction kettles, railway tank cars, ship cabins, enclosed transport corridors, underground conduits (such as cable trenches), flues, tunnels, grain silos, pits, vertical shafts, pulp vats, sewage pools, sewers, cellars, septic tanks, sewage wells, and drainage channels. The majority of these locations are sites where work is performed on an irregular or non-continuous basis.

Technical Parameters

-
Product Name Rescue Tripod
Brand KAEN
Model JSJ-S
Working load (winch) 200-500kg
Blocking force (winch) 22kN
Fully expanded 222cm
Complete Contraction 141cm
Max lifting weight 1600N
Material High-strength aluminum alloy
Steel cable(winch) 30M
Gear ratio (winch) 5:1
Blocking force 500kg

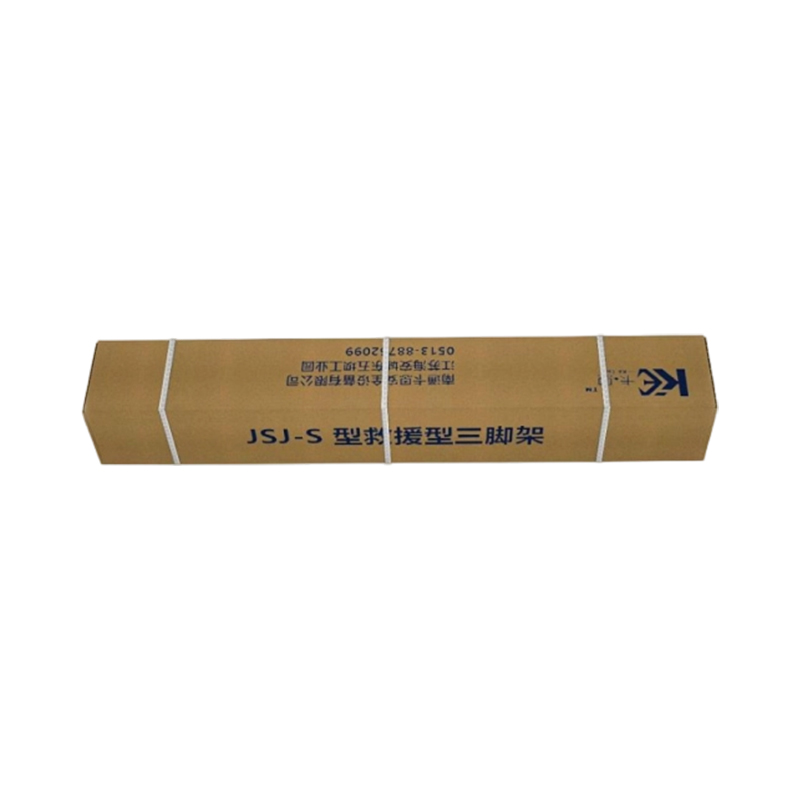

Packing Size 176×28×25cm
Weight ≤31kg
Certificate / Standard CE EN 795
