Rescue Tripod – Features and Specifications
The Rescue Tripod is constructed from high-strength, lightweight alloy with telescopic legs, featuring integrated self-locking mechanisms for both lifting and lowering.
It is equipped with specially designed stainless steel wire ropes that provide excellent flexibility and are resistant to damage from rust or lack of lubrication.
Product Advantages
Key Technical Specifications:
Maximum Load: 300-800kg
Collapsed Length: 141cm
Fully Extended Length: 222cm
Manual Handle Force: ≤500 N
Wire Rope Length: 20–50 m
Design and Functionality:
The tripod is primarily intended for rescue operations in deep wells and confined spaces. Its robust structure includes:
Main frame
Dual-point safety hooks
Full-body safety harness

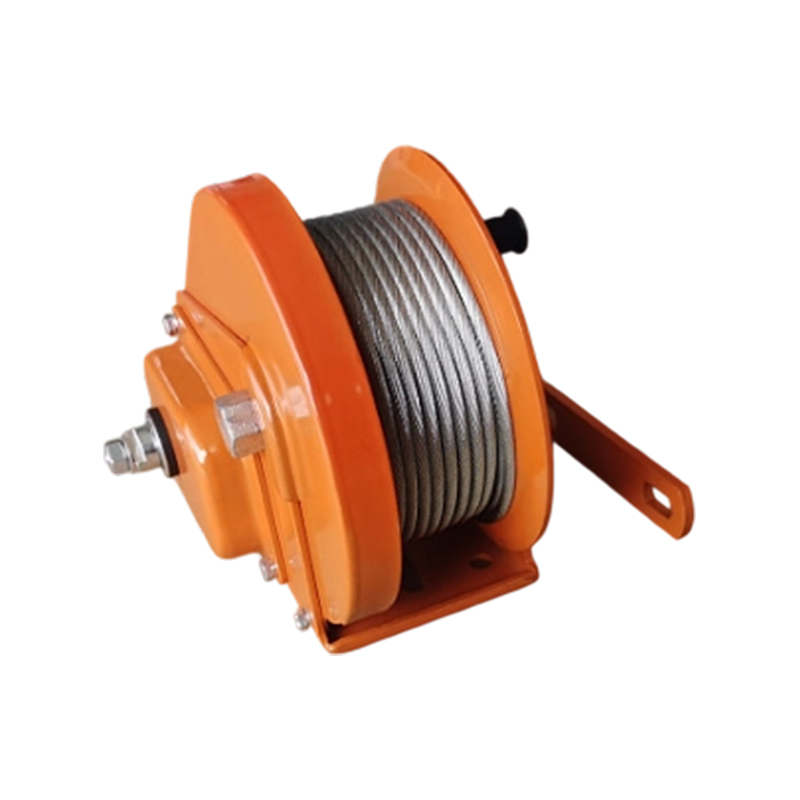

Rescue hoisting device
Telescopic fall arrest system

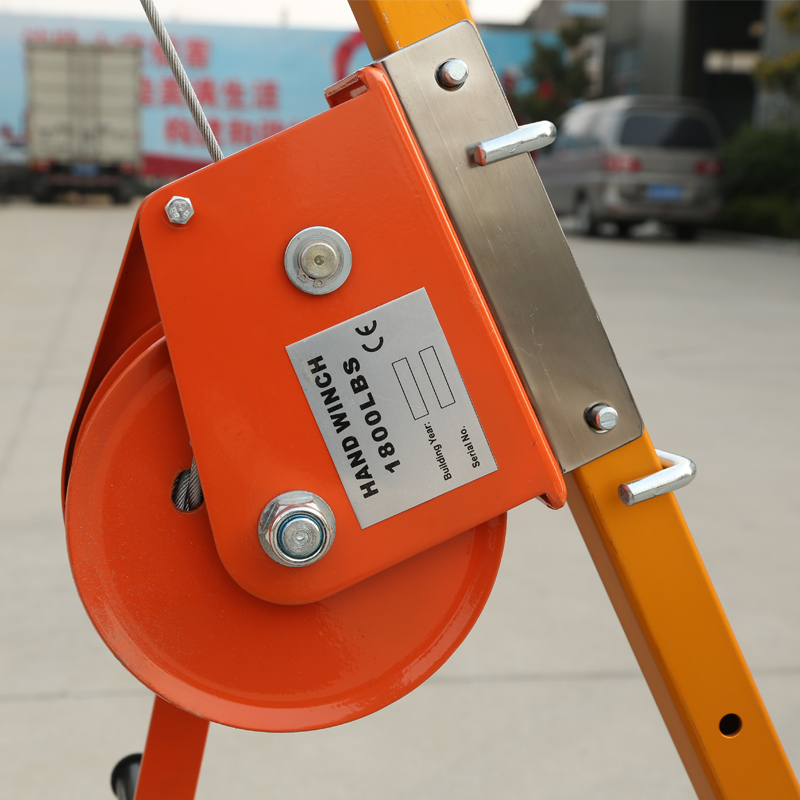

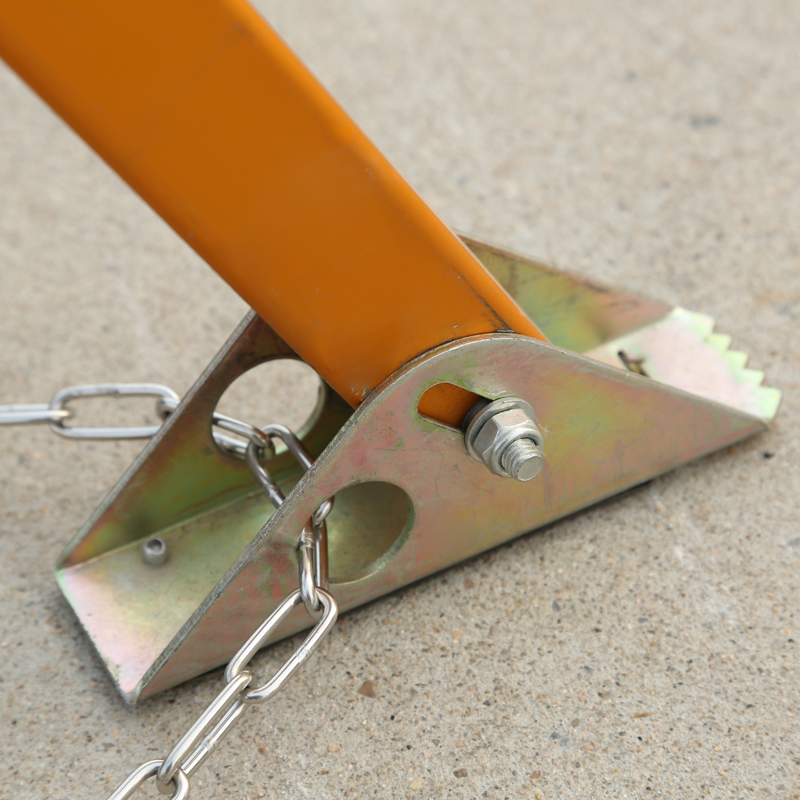

The telescopic legs, made of high-strength alloy, feature a safety factor greater than 10. The base is equipped with a circular protective chain, and the winch includes self-locking mechanisms to ensure the safety of the hoist rope.
Technical Parameters
| Product Name | Rescue Tripod |
| Brand | KAEN |
| Model | JSJ-S |
| Working load (winch) | 300kg |
| Blocking force (winch) | 22kN |
| Fully expanded | 222cm |
| Complete Contraction | 141cm |
| Max lifting weight | 1600N |
| Material | High strength aluminum alloy |
| Steel cable(winch) | 30M |

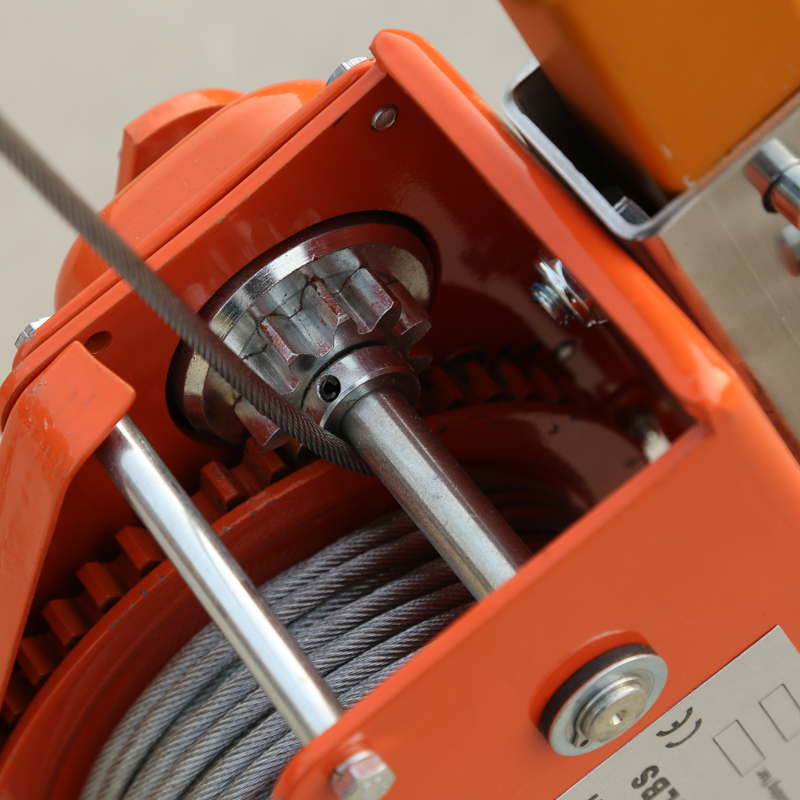

| Gear ratio (winch) | 5:1 |
| Blocking force | 500kg |

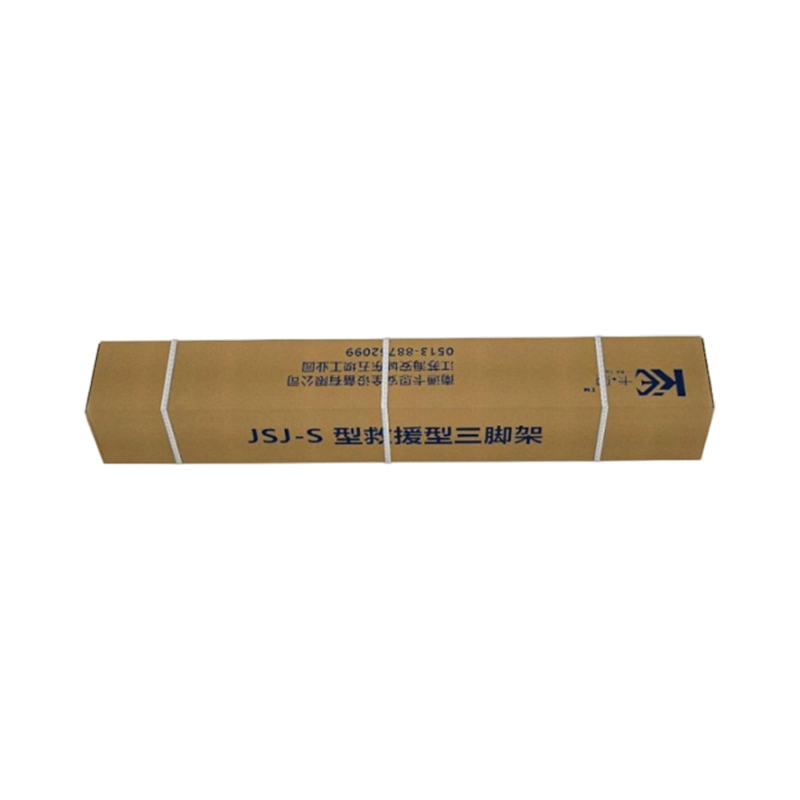

| Packing Size | 176×28×25cm |
| Weight | ≤31kg |
| Certificate / Standard | CE EN 795 |
