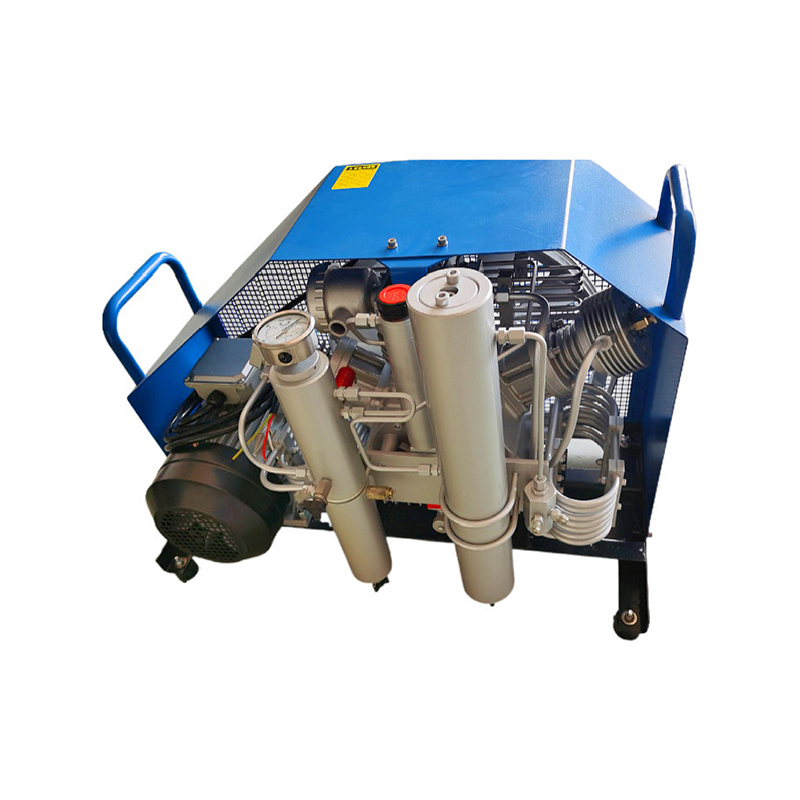

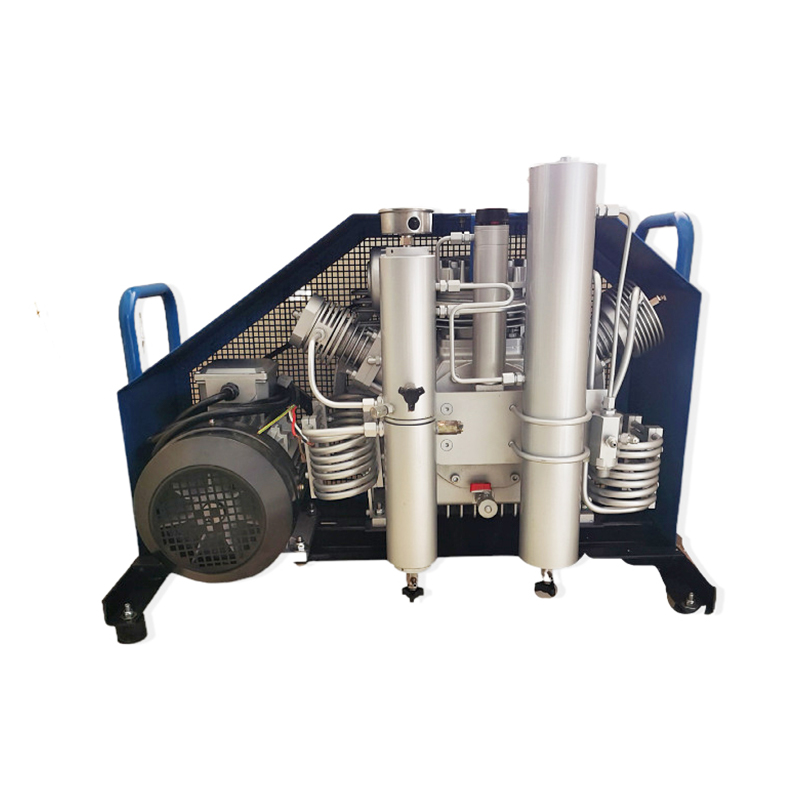

The KAEN-300L dual-bottle breathing air filling pump is a standardized piece of equipment specifically designed for filling high-pressure breathing gas cylinders. It adopts a dual-bottle synchronous filling structure, which differs from the single-bottle model's single-time filling mode, significantly improving operational efficiency. Through multiple-stage compression and precise filtration systems, it ensures the purity and safety of the output gas.
Its compact structure takes into account both fixed-site usage and mobile operation requirements. While maintaining a stable output pressure, it optimizes the operation process and maintenance convenience, and is suitable for the supply of high-pressure breathing air in various professional scenarios.
Product Advantages
Product features:
Dual-bottle parallel inflation design, allowing simultaneous filling of two gas cylinders, reducing the time for batch operations.
Capable of achieving a maximum working pressure of 300bar, meeting the pressure requirements of various breathing apparatus gas cylinders.
Real-time pressure monitoring and automatic shutdown function, automatically cutting off the inflation circuit when the pressure reaches the standard.
Product advantages:
Triple purification filtration system, sequentially completing dust removal, oil removal, and water removal, ensuring clean breathing air.
Wind-cooled cooling system operates continuously, controlling the temperature during the compression process and maintaining stable equipment operation.
Noise level ≤ 83 decibels, in compliance with ISO3746 standards, reducing noise interference in the working environment.
Full steel powder-coated base design, featuring both shock resistance and portability, suitable for various scenarios of transportation needs.
Application scenarios:
Fire rescue field: Provide rapid inflation support for the air respirator cylinders of fire rescue personnel.
Diving operation scenarios: Meet the batch filling requirements of diving clubs and underwater operation teams for cylinders.
Industrial protection scenarios: Adapt to the inflation of breathing equipment for operations in harmful environments such as petrochemicals and mines.
Emergency rescue scenarios: Used for emergency replenishment of respirator cylinders at natural disasters and accident sites.
Technical Parameters
|
Product Brand |
Kaen |
|
Air Compressor |
3-stage compression, oil lubrication |
|
Cooling System |
Air-cooled |
|
Motor Power |
4KW |
|
Total Weight |
Approximately 100 kg |
|
Oil Cycle |
Approximately 200 hours |
|
Lubrication |
Splash lubrication |
|
Motor |
380VAC 50HZ |
|
Air Purification Level |
Two-stage air filtration |
|
Air Filling Time |
Approximately 8 minutes to fill one gas cylinder (6.8L/300BAR) |
|
Dimensions |
890mm x 630mm x 440mm |
|
Air Filter Replacement Cycle |
Approximately 80 hours |
|
Activated Carbon Filter Replacement Cycle |
Approximately 40 hours |
