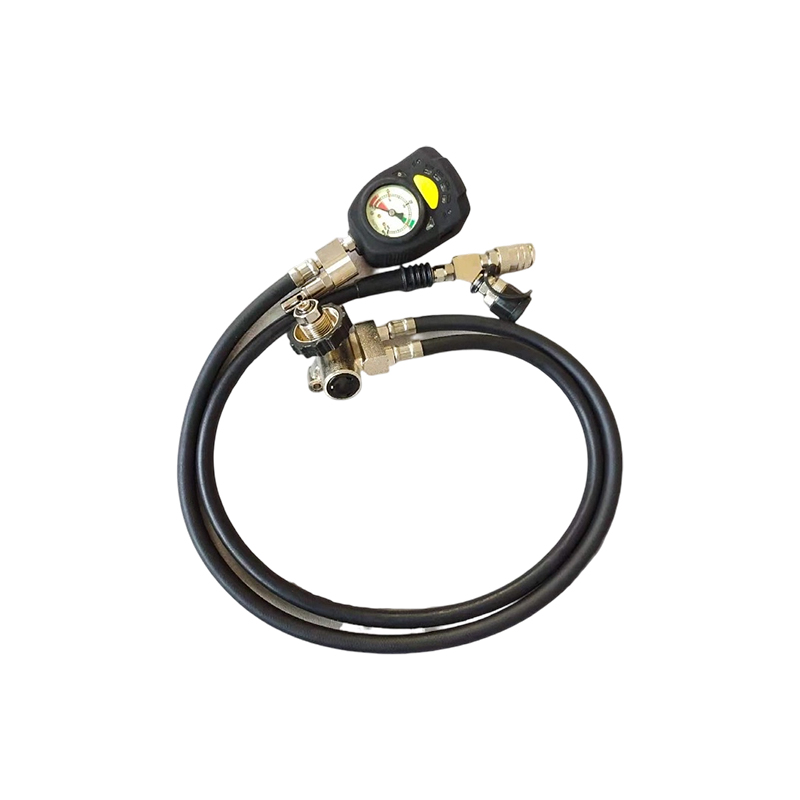

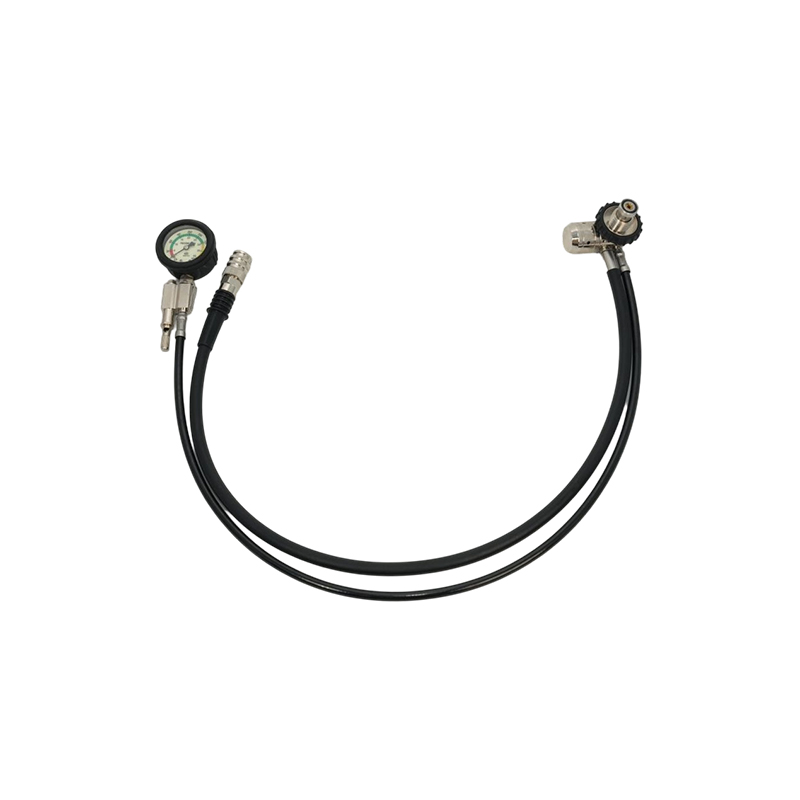

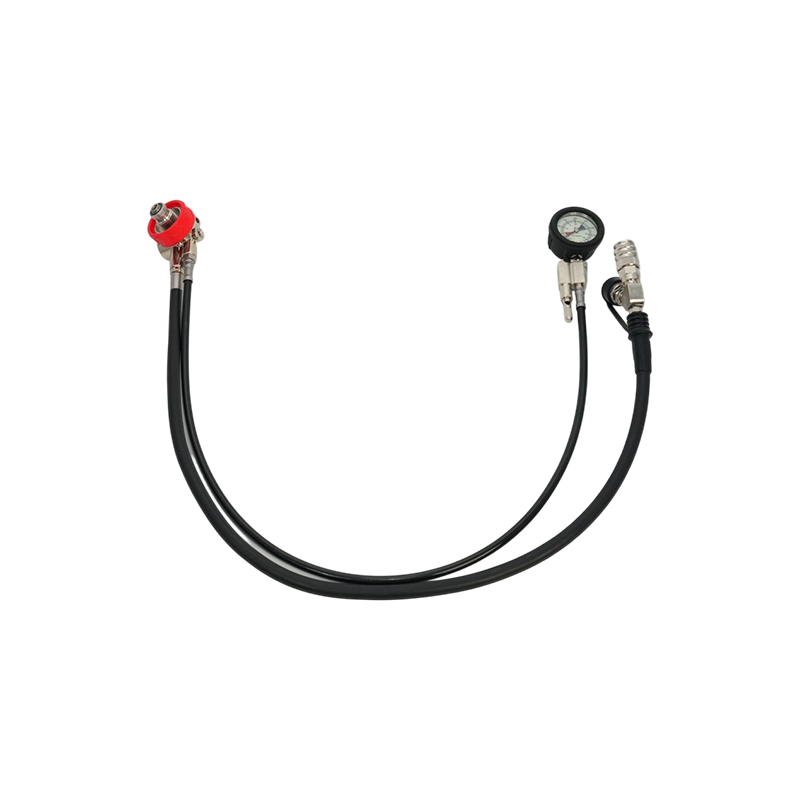

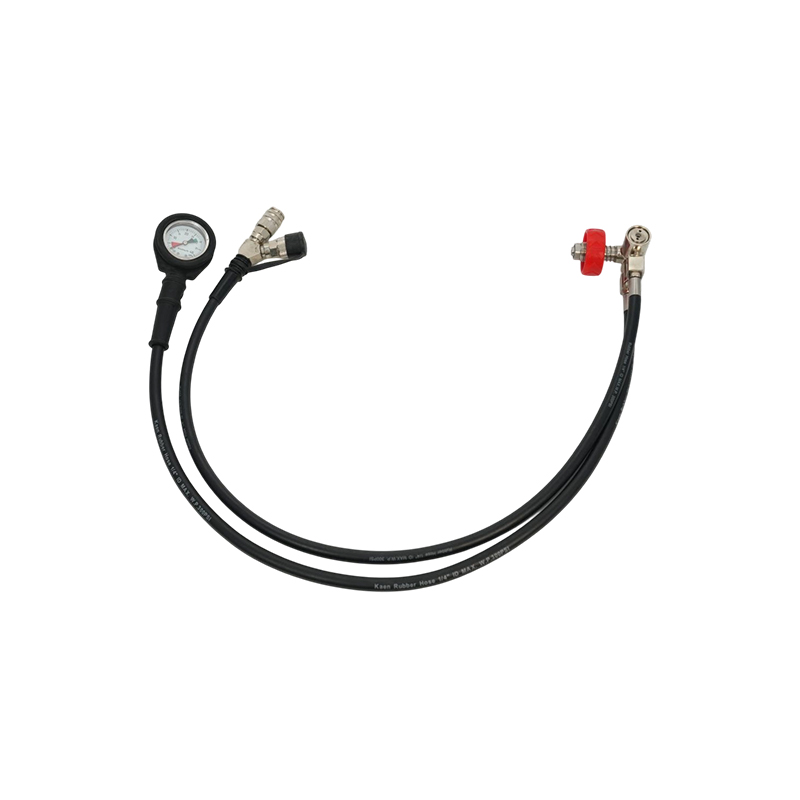

Pressure Reducer System

Introduction:
The regulator assembly includes a pressure-reducing valve, medium- and high-pressure hoses, a mechanical pressure gauge, a remaining-air alarm, and a quick connector. It converts high-pressure air into low-pressure air that meets safe breathing standards.

Product Advantages

-

Features:
Scientifically designed for safe pressure reduction, the assembly is made of high-quality stainless steel that is corrosion-resistant, flame-retardant, and impact-resistant. The pressure gauge is fully waterproof for 24 hours.



The pressure regulator is mounted on the backplate frame and connected to the cylinder valve via a handwheel with a connecting nut.

The air output is divided into high- and low-pressure sections. High-pressure air flows through the high-pressure hose to the pressure gauge and remaining-air alarm. Regulated low-pressure air is delivered through the medium-pressure hose to the air supply valve, with a safety valve installed in the low-pressure chamber.

All connections between the regulator and the medium- and high-pressure hoses are quick-connect types, allowing the hoses to rotate freely.



The medium-pressure hose is a flexible air delivery line made of rubber with quick-connect fittings. One end attaches to the air supply valve, and the other to the regulator. The quick-connect design allows for fast assembly and disassembly, and the hose can rotate freely within the same plane.

The high-pressure hose is made of pressure-resistant rubber and delivers high-pressure air to the pressure gauge and remaining-air alarm system.

Designed to work with the pre-alarm system, it continuously monitors the cylinder’s remaining air and triggers an automatic alarm when pressure drops below 5 MPa.
